Coronet Series® by Jeremias

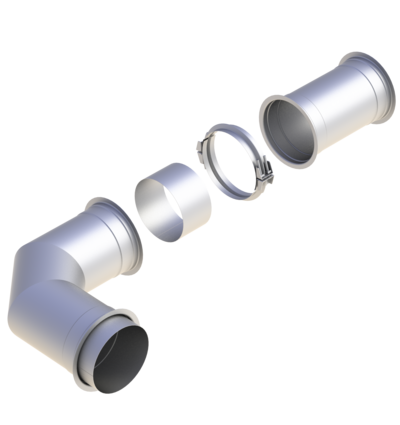

SCQR

SCOR

Single Wall all fuel exhaust system

Single wall all fuel exhaust system:

Easiest and fastest joint assembly on the market using innovative and industry first technology

PURPOSE

• A high quality, yet economic boiler stack, engine exhaust, and grease duct offering from Jeremias.
• Each joint ships with an inner sleeve to protect the sealant from flue gases.
• Most rugged and easiest to install flange system, yet most reliable as the inner sleeve aligns and protects the seal from high pressure washings

APPLICATIONS

• Breeching and chimney for boilers, engines and turbine exhaust piping, commercial kitchen exhaust ducts, ovens, process stacks, and paint booth exhaust.
• Applicable for all fuels: gas, oil, and solid fuels including wood.

UL/ULC LISTINGS

1. UL-2561 Standard, 1400F Chimney Listing (ULC/ORD-C959Industrial Type 760 C Chimney)
2. UL-103 Standard, Building Heating Appliance Chimney(Industrial Type 540°C Chimney)
3. 60” W.C. Pressure Rating under UL 103
4. UL-1978 Standard, Grease Duct (ULC-S662 Standard forFactory-Built Grease Ducts)

MaterialInner liner: 304 stainless steel
Connection / installation detailsInner connection has a slight expansion for a 5” sleeve, with ½” rolled flange to flange for a vee band
Supplied sealant is used in the vee band to make seal
An outer band completes the joint assembly

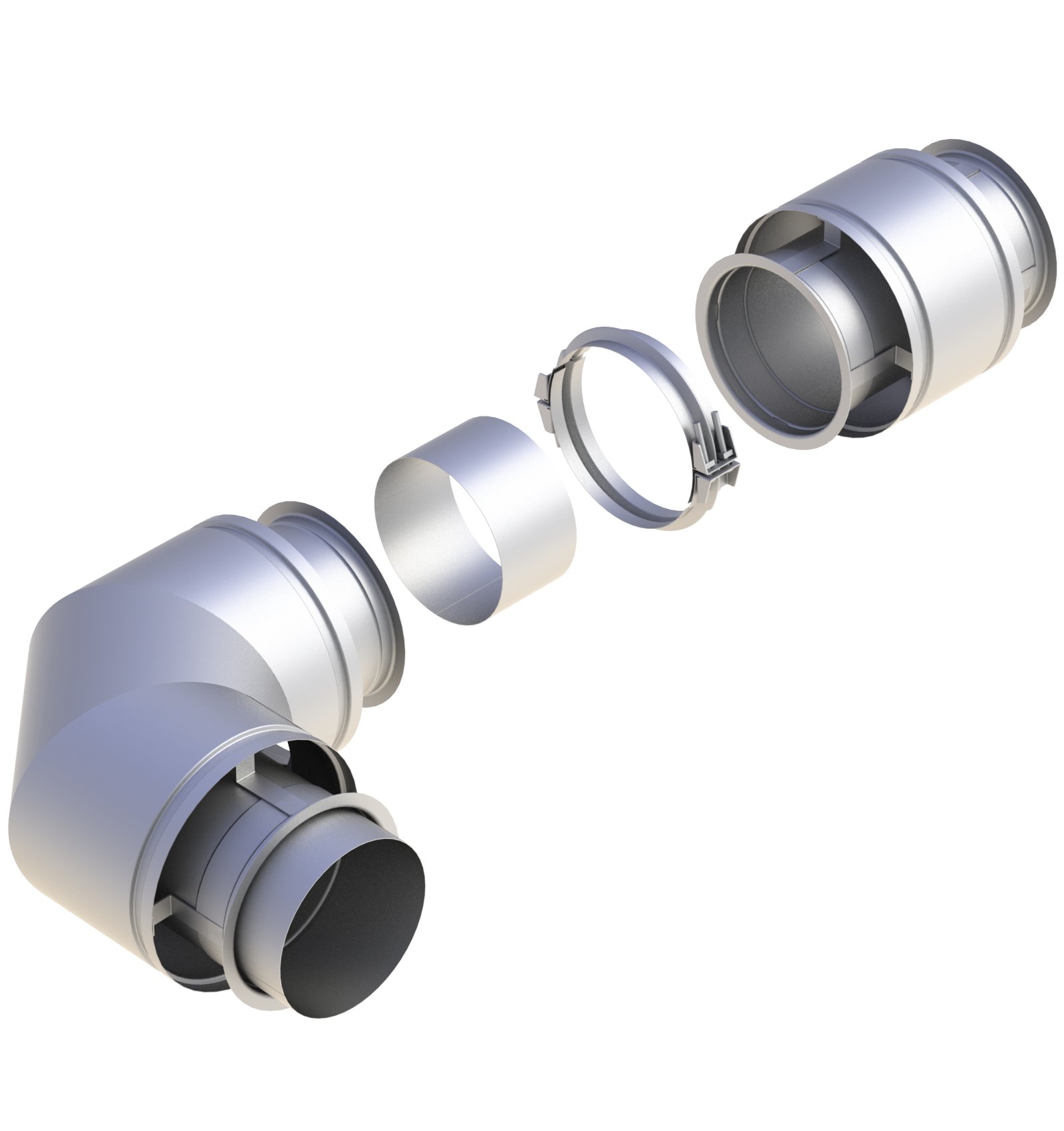

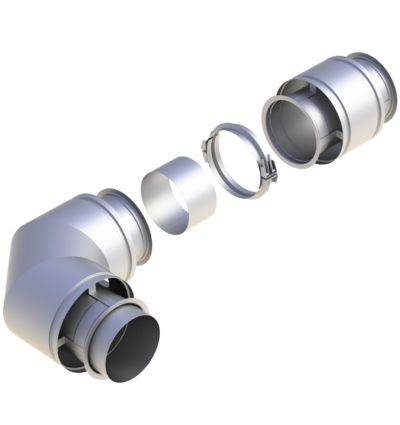

DCOR

DCOR

Double wall system with air insulation

Double wall all fuel exhaust system:

With air insulation

PURPOSE

• A high quality, yet economic boiler stack, engine exhaust, and grease duct offering from Jeremias.
• Each joint ships with an inner sleeve to protect the sealant from flue gases.
• Most rugged and easiest to install flange system, yet most reliable as the inner sleeve aligns and protects the seal from high pressure washings

APPLICATIONS

• Breeching and chimney for boilers, engines and turbine exhaust piping, commercial kitchen exhaust ducts, ovens, process stacks, and paint booth exhaust.
• Applicable for all fuels: gas, oil, and solid fuels including wood.

UL/ULC LISTINGS

1. UL-2561 Standard, 1400F Chimney Listing (ULC/ORD-C959Industrial Type 760 C Chimney)
2. UL-103 Standard, Building Heating Appliance Chimney(Industrial Type 540°C Chimney)
3. 60” W.C. Pressure Rating under UL 103
4. UL-1978 Standard, Grease Duct (ULC-S662 Standard forFactory-Built Grease Ducts)

MaterialInner liner: 304 stainless steel
Outer jacket: Aluminized steel (optional 409 and 304 stainless steel).
Insulation OptionsInsulating air space at 1.25” (DCOR)
Connection / Installation detailsInner connection has a slight expansion for a 5” sleeve, with ½” rolled flange to flange for a vee band
Supplied sealant is used in the vee band to make seal
An outer band completes the joint assembly

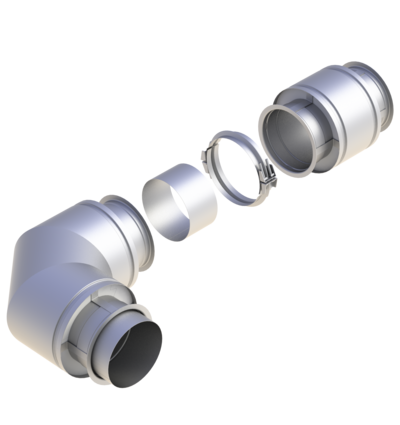

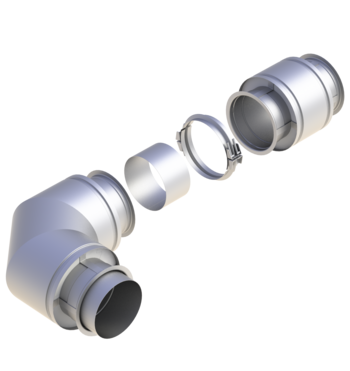

DCOR+

DCOR+

Double wall system with fiber insulation

Double wall all fuel exhaust system:

With fiber insulation

PURPOSE

• A high quality, yet economic boiler stack, engine exhaust, and grease duct offering from Jeremias.
• Each joint ships with an inner sleeve to protect the sealant from flue gases.
• Most rugged and easiest to install flange system, yet most reliable as the inner sleeve aligns and protects the seal from high pressure washings

APPLICATIONS

• Breeching and chimney for boilers, engines and turbine exhaust piping, commercial kitchen exhaust ducts, ovens, process stacks, and paint booth exhaust.
• Applicable for all fuels: gas, oil, and solid fuels including wood.

UL/ULC LISTINGS

1. UL-2561 Standard, 1400F Chimney Listing (ULC/ORD-C959Industrial Type 760 C Chimney)
2. UL-103 Standard, Building Heating Appliance Chimney(Industrial Type 540°C Chimney)
3. 60” W.C. Pressure Rating under UL 103
4. UL-1978 Standard, Grease Duct (ULC-S662 Standard forFactory-Built Grease Ducts)

MaterialInner liner: 304 stainless steel
Outer jacket: Aluminized steel (optional 409 and 304 stainless steel)
Insulation Options1.25“ ceramic fiber (DCOR+1)
2.25“ ceramic fiber (DCOR+2)
3.25“ ceramic fiber (DCOR+3)
4.25“ ceramic fiber (DCOR+4)
Connection / Installation detailsInner connection has a slight expansion for a 5” sleeve, with ½” rolled flange to flange for a vee band
Supplied sealant is used in the vee band to make seal
An outer band completes the joint assembly

    Coronet Series® by Jeremias

    Commercial / Industrial Exhaust systems with competitive features and pricing.

    SCOR
    DCOR
    DCOR+

    Product overview

    SCOR

    Single-Wall

    • Breechings for Boilers and Heating Appliances
    • Liners
    • Generator
    • Commercial Kitchen

    DCOR

    Double-Wall Air insulation

    • Stacks and Breechings for Boilers and Heating Appliances
    • Liners
    • Generator
    • Commercial Kitchen

    DCOR+

    Double-wall Fiber Insulation

    • Stacks and Breechings for Boilers and Heating Appliances
    • Liners
    • Generator
    • Commercial Kitchen

    SCQR

    SCOR

    Single Wall all fuel exhaust system

    Single wall all fuel exhaust system:

    Easiest and fastest joint assembly on the market using innovative and industry first technology

    PURPOSE

    • A high quality, yet economic boiler stack, engine exhaust, and grease duct offering from Jeremias.
    • Each joint ships with an inner sleeve to protect the sealant from flue gases.
    • Most rugged and easiest to install flange system, yet most reliable as the inner sleeve aligns and protects the seal from high pressure washings

    APPLICATIONS

    • Breeching and chimney for boilers, engines and turbine exhaust piping, commercial kitchen exhaust ducts, ovens, process stacks, and paint booth exhaust.
    • Applicable for all fuels: gas, oil, and solid fuels including wood.

    UL/ULC LISTINGS

    1. UL-2561 Standard, 1400F Chimney Listing (ULC/ORD-C959Industrial Type 760 C Chimney)
    2. UL-103 Standard, Building Heating Appliance Chimney(Industrial Type 540°C Chimney)
    3. 60” W.C. Pressure Rating under UL 103
    4. UL-1978 Standard, Grease Duct (ULC-S662 Standard forFactory-Built Grease Ducts)

    MaterialInner liner: 304 stainless steel
    Connection / installation detailsInner connection has a slight expansion for a 5” sleeve, with ½” rolled flange to flange for a vee band
    Supplied sealant is used in the vee band to make seal
    An outer band completes the joint assembly

    DCOR

    DCOR

    Double wall system with air insulation

    Double wall all fuel exhaust system:

    With air insulation

    PURPOSE

    • A high quality, yet economic boiler stack, engine exhaust, and grease duct offering from Jeremias.
    • Each joint ships with an inner sleeve to protect the sealant from flue gases.
    • Most rugged and easiest to install flange system, yet most reliable as the inner sleeve aligns and protects the seal from high pressure washings

    APPLICATIONS

    • Breeching and chimney for boilers, engines and turbine exhaust piping, commercial kitchen exhaust ducts, ovens, process stacks, and paint booth exhaust.
    • Applicable for all fuels: gas, oil, and solid fuels including wood.

    UL/ULC LISTINGS

    1. UL-2561 Standard, 1400F Chimney Listing (ULC/ORD-C959Industrial Type 760 C Chimney)
    2. UL-103 Standard, Building Heating Appliance Chimney(Industrial Type 540°C Chimney)
    3. 60” W.C. Pressure Rating under UL 103
    4. UL-1978 Standard, Grease Duct (ULC-S662 Standard forFactory-Built Grease Ducts)

    MaterialInner liner: 304 stainless steel
    Outer jacket: Aluminized steel (optional 409 and 304 stainless steel).
    Insulation OptionsInsulating air space at 1.25” (DCOR)
    Connection / Installation detailsInner connection has a slight expansion for a 5” sleeve, with ½” rolled flange to flange for a vee band
    Supplied sealant is used in the vee band to make seal
    An outer band completes the joint assembly

    DCOR+

    DCOR+

    Double wall system with fiber insulation

    Double wall all fuel exhaust system:

    With fiber insulation

    PURPOSE

    • A high quality, yet economic boiler stack, engine exhaust, and grease duct offering from Jeremias.
    • Each joint ships with an inner sleeve to protect the sealant from flue gases.
    • Most rugged and easiest to install flange system, yet most reliable as the inner sleeve aligns and protects the seal from high pressure washings

    APPLICATIONS

    • Breeching and chimney for boilers, engines and turbine exhaust piping, commercial kitchen exhaust ducts, ovens, process stacks, and paint booth exhaust.
    • Applicable for all fuels: gas, oil, and solid fuels including wood.

    UL/ULC LISTINGS

    1. UL-2561 Standard, 1400F Chimney Listing (ULC/ORD-C959Industrial Type 760 C Chimney)
    2. UL-103 Standard, Building Heating Appliance Chimney(Industrial Type 540°C Chimney)
    3. 60” W.C. Pressure Rating under UL 103
    4. UL-1978 Standard, Grease Duct (ULC-S662 Standard forFactory-Built Grease Ducts)

    MaterialInner liner: 304 stainless steel
    Outer jacket: Aluminized steel (optional 409 and 304 stainless steel)
    Insulation Options1.25“ ceramic fiber (DCOR+1)
    2.25“ ceramic fiber (DCOR+2)
    3.25“ ceramic fiber (DCOR+3)
    4.25“ ceramic fiber (DCOR+4)
    Connection / Installation detailsInner connection has a slight expansion for a 5” sleeve, with ½” rolled flange to flange for a vee band
    Supplied sealant is used in the vee band to make seal
    An outer band completes the joint assembly
